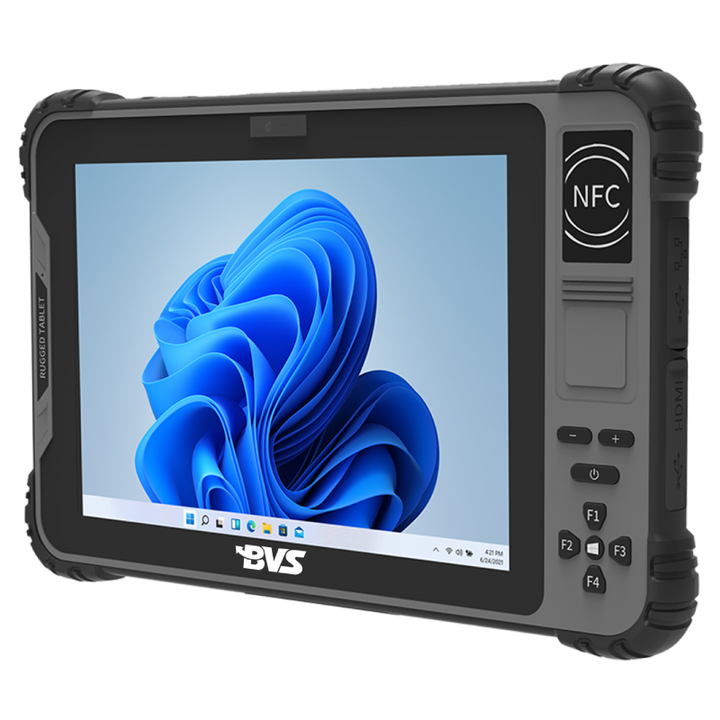

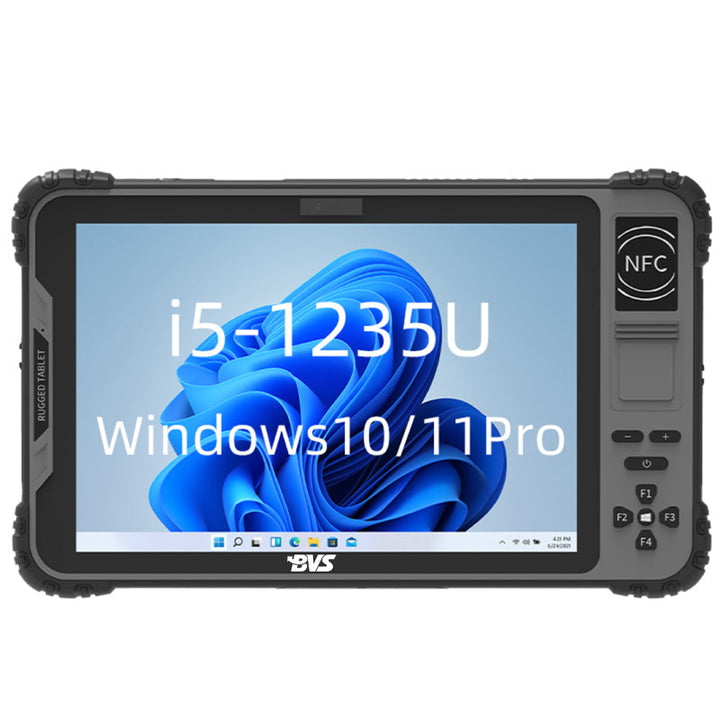

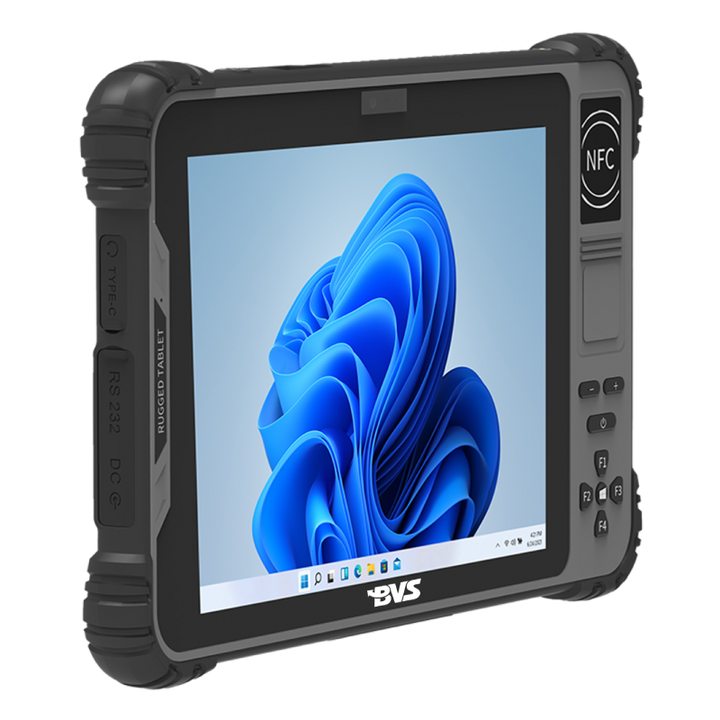

BVS 10.1" Windows 11 Industrial Tablet Intel Core i5/i7 CPU 16GB RAM 256GB SSD IP65 MIL-STD Drop Proof 5G & WiFi 6 Removable Battery Sunlight-Readable Screen with Biometric Reader, RFID, NFC
- Military-Grade Protection IP65 Certified: Total dust ingress protection & water jet resistance，1.2m (4ft) Drop Survival onto concrete (MIL-STD-810H compliant)，Extended Temp Range: Operates at -20°C to 60°C (-4°F to 140°F)，±12kV ESD protection & 95% humidity tolerance
- Elite Processing Power Intel Core i5-1235U (10C/12T, up to 4.7GHz Turbo)，Intel Iris Xe Graphics for CAD/3D applications，16GB LPDDR5 RAM (Upgradable to 32GB)，256GB Removable SSD (Expandable to 1TB)
- Sunlight-Readable Display 10.1" IPS (1920×1200) @ 450 nits (Optional 1000-nit for direct sun)，10-point Projected Capacitive Touch (G+F+F)，Glove & Wet Hand Support

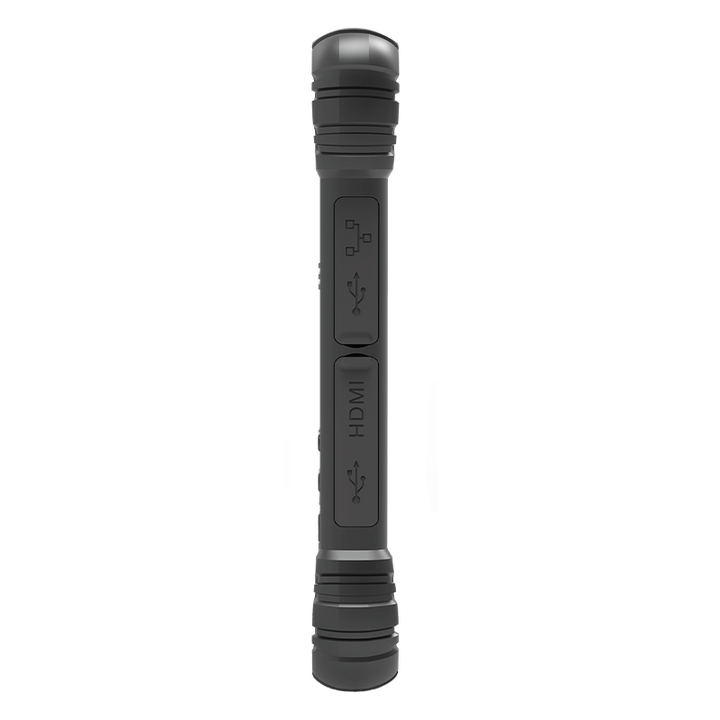

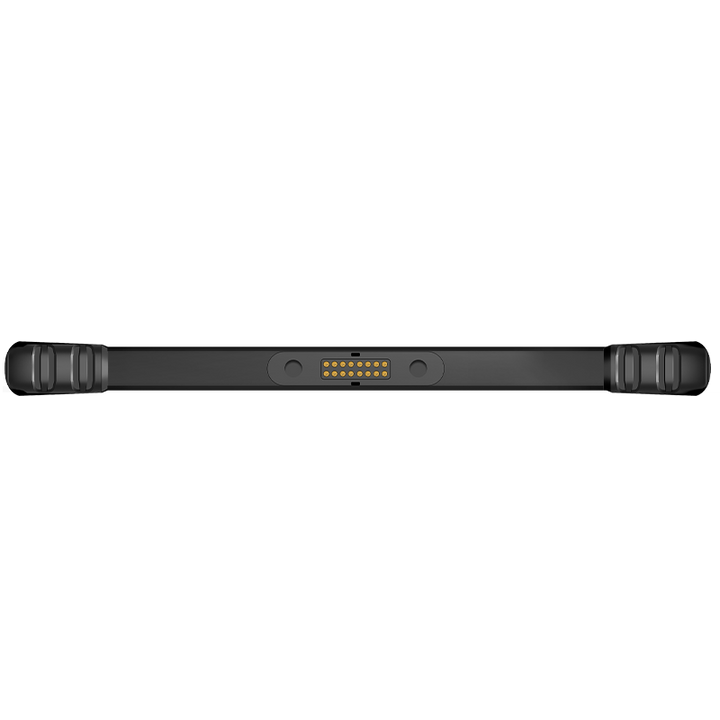

- Enterprise-Grade I/O 2× USB 3.0 + HDMI 1.4 + Gigabit RJ45，RS232 DB9 Serial Port (Full 9-pin) + 3.5mm Audio，Dual SIM Slots + MicroSD (128GB max)，Pogo Pins: 16-pin (Back) + 8-pin (Bottom) for docking
- Modular Expansion Barcode Scanner: Zebra/Honeywell/Newland，RFID/NFC (13.56MHz & UHF optional)，Fingerprint Sensor & Chinese ID Reader，High-Precision GNSS Module
Specifications
【Model】BVS-101-W
【Item】10.1'' Industrial Rugged Windows Tablet – Shockproof & Dustproof | Perfect for Construction, Manufacturing & Outdoor Work
[Material] ABS/PC/Rubber TPU/Aluminum
【Notice】
- Please get in touch with us if you need other specifications or wholesale products.
- Payment terms: Samples 100% payment in advance, bulk order 30% deposit, 70% payment before shipment. Sample order accepted.
- Sample delivery time is 7 working days after payment is received, for bulk orders, shipping time is negotiated.
- The shipping fees should be covered by buyers, please get in touch with us for details.
- For batch orders, print logos, design boxes, etc.
- Warranty: One year.
【Parameter List】
|
System |
Model |
BVS-101-W |
||||||||||||||||
|
CPU |
Alder Lake i5-1235U, TDP15W |
|||||||||||||||||
|
Memory |
16GB |
|||||||||||||||||
|
SSD |
256GB （SSD Support: 512GB/1TB） |
|||||||||||||||||
|
System |
Windows 11 Pro 64bit |
|||||||||||||||||
|
Display |
Screen |
10.1 Inch LCD screen |
||||||||||||||||
|
Resolution |
1200*1920 |
|||||||||||||||||
|
Touch Pannel |
Capacitive screen Multi-touch (G+F+F) 10-point touch supports glove mode and wet hand mode |
|||||||||||||||||
|
Brightness |
450 nit |
|||||||||||||||||
|
Screen scale |
16:10 |
|||||||||||||||||
|
Network |
WiFi |
802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G |
||||||||||||||||
|
Ethernet |
Support |
|||||||||||||||||
|
BT |
BT5.1 (BLE) class1 Transmited distance：10m |
|||||||||||||||||
|
GPS |
GPS，GLONASS，BD |
|||||||||||||||||
|
Interfaces |
|
|
||||||||||||||||
|
Multimedia |
Video |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc |
||||||||||||||||
|
Audio |
MP3/WMA/AAC etc. |
|||||||||||||||||
|
Picture |
JPEG, jpg |
|||||||||||||||||
|
Other functions |
Waterproof |
|
||||||||||||||||
|
NFC |
Support |
|||||||||||||||||
|
Speaker |
8Ω/2W Waterproof Speaker *2 |
|||||||||||||||||
|
Camera |
Front 8.0MP |
|||||||||||||||||
|
OSD Language |
Multi-language OSD operation |
|||||||||||||||||
|
Buttons |
Power *1 |
【Installation】
Without bracket by default.
Support wall mount, desktop stand, embedded, open frame installation with Vesa hole.
【Interface】

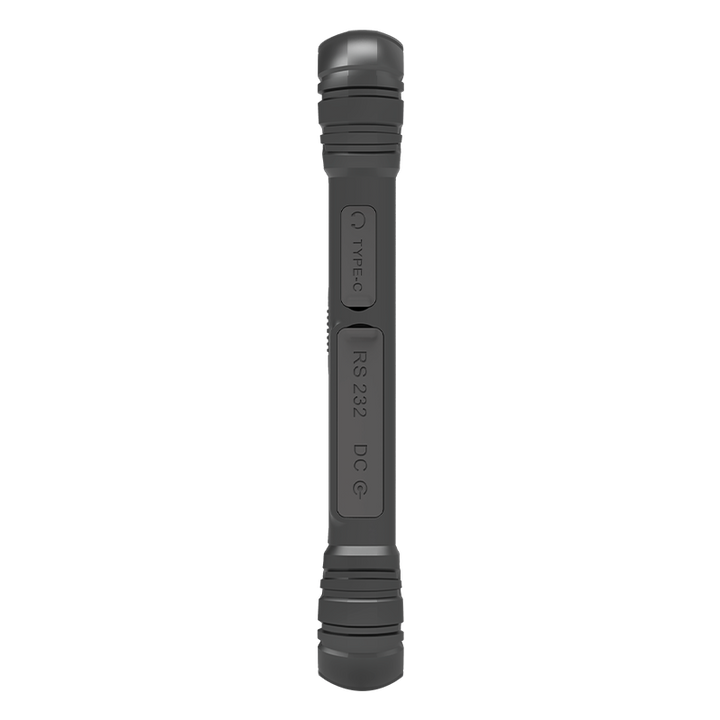

RS232/DC/HD/M1/USB/Mini USB/RJ45/Audio Port/sim card
【Application】
Industrial automation, face recognition, self-service terminal, home automation, robot display, digital signage, advertising display, medical monitor, etc.
