BVS-HY101 10.1 Inch Android RK3566 Tablet, 2GB RAM 32GB ROM, LED Lighted Frame, POE Supported, Wall Mount Touch Display for Smart Home & Kiosk
Specifications
【Model Name】BVS-HY101
【Item】BVS-HY101 10.1 Inch Android RK3566 Tablet, 2GB RAM 32GB ROM, LED Lighted Frame, POE Supported, Wall Mount Touch Display for Smart Home & Kiosk
【Material】Plastic Case
【Parameter List】
|
System |
Model |
HY101 |
|
CPU |
RK3566 (RK3288/RK3399 Optional) |
|
|
RAM |
2GB Standard (4GB/6GB/8GB Optional) |
|
|
ROM |
32GB Standard (32GB/64GB Optional) |
|
|
System |
Android 11 |
|
|
Dispaly |
Screen |
10.1 inch Touch screen |
|
Resolution |
1280*800 |
|
|
Contrast |
800:1 |
|
|
Brightness |
350cdm2 |
|
|
Screen scale/Display area |
16:10 / Display area |
|
|
Network |
WiFi |
802.11b/g/n |
|
Ethernet |
Support |
|
|
BT |
Support |
|
|

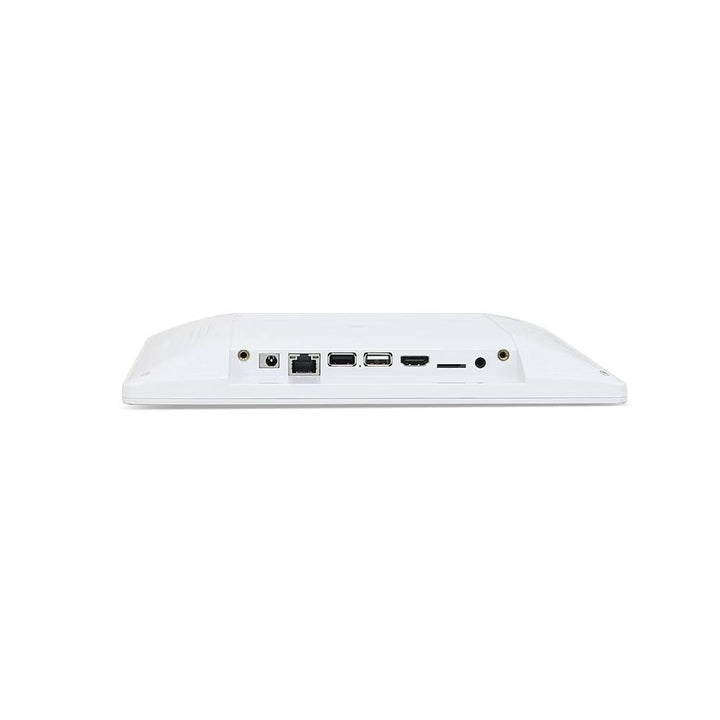

Interfaces |
Support |
Support SD card ( Max 32G )/ POE port |
|
USB |
USB Host 2.0 *2 |
|
|
RJ-45 |
Network interface |
|
|
DC |
DC input |
|
|
Display |
HD/M1 |
|
|
Headset |
3.5mm stereo headphone output |
|
|
Multimedia |
Video |
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc |
|
Audio |
MP3/WMA/AAC etc. |
|
|
Picture |
JPEG, jag |
|
|
Other functions |
Wireless mouse |
Support |
|
Wireless keyboard |
Support |
|
|
Speaker |
3Wx2 |
|
|
Camera |
2MP |
|
|
OSD Language |
Multi language OSD operation |
【Installation】
Without bracket by default. Supply with POE switches.
Support wall mount, desktop stand, embedded, open frame installation with Vesa hole.
【Vesa Hole】
75mm*75mm
