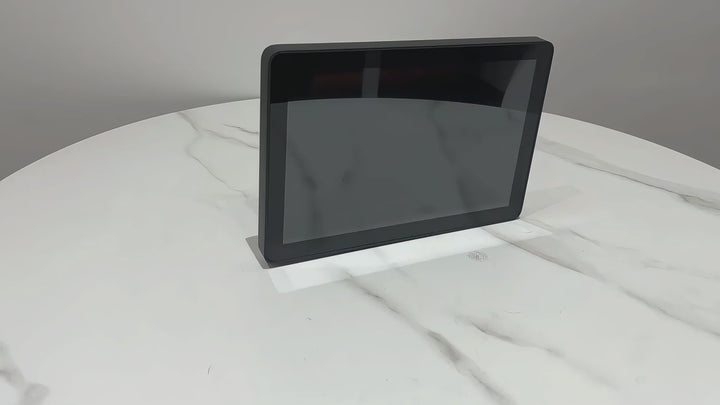

BVS-QR101 V3.0 10.1'' Android PoE Touch Panel – Metal Black Housing, LAN + RS485 + OTG + Type‑C, Smart Meeting & Industrial HMI
- Wiring & Installation ---“All-in-one PoE-powered Android touch panel – reduce external power supplies, simplify wiring and cut installation time.”
- Housing & Reliability---“Rugged black metal housing and fanless design for 24/7 stable operation in commercial and industrial environments.”
- Building & LoT---“Designed for smart home dashboards, meeting room booking, industrial HMI, access control and other IoT automation projects.”
- Screen & Performance---“10.1'' IPS capacitive touch screen with 1280×800 resolution, powered by RK3566 quad-core CPU with 2GB RAM and 32GB eMMC for smooth UI and apps.”
- Service & Customization---“Professional technical support, long-term supply, OEM/ODM customization and extended warranty options to secure your project lifecycle.”
Description
Specifications
【Parameter List】
| Model: HY101 series | Standard | Optional |
| TouchScreen | 10 Point | |
| Material | Plastic | |
| Size | 10.1'' | |
| Resolution | 1280*800 | |
| Screen scale | 16:10 | |
| Brightness | 250 cd/m² (Typ.) | 500/1000 cd/m²(optional) |
| CPU | RK3566 | RK3568/RK3576/RK3588 (optional) |
| Operating System | Android 11 | 12/13/14 optional |
| RAM | 2GB | 4GB/8GB/16GB optional |
| ROM | 32GB | 64GB/128GB/256GB optional |
| Network | 2.4G-Wifi | |
| Bluetooth | ||
| Ethernet | ||
| POE Function | ||
| I/O Ports | OTG x 1 | |
| LAN x 1 | ||
| Audio x 1 | ||
| TF x 1(MAX 32G) | ||
| Speaker | 3W x 2 | |
| Power Adapter | 12V, 3A |
