BVS IPC - Manufacturer Providing Wholesale Industrial Control Machines for Automation Solutions

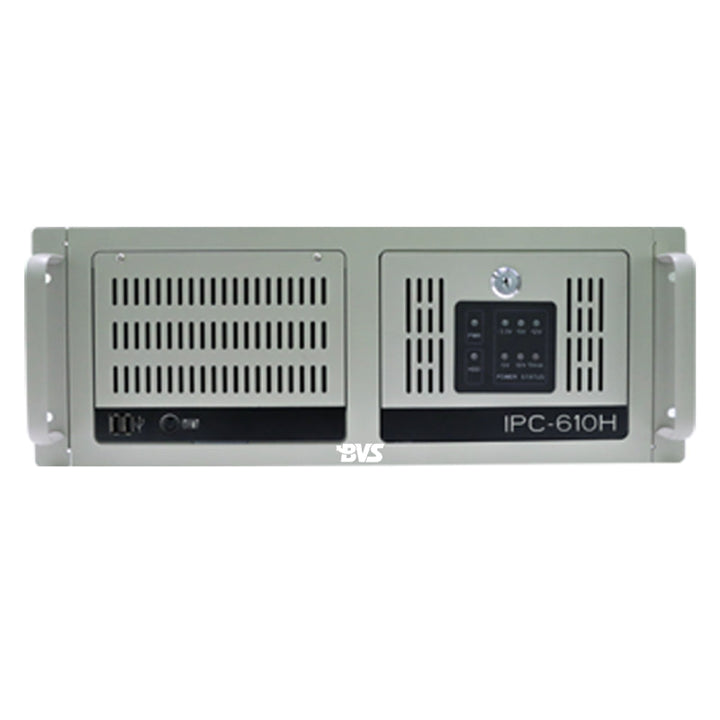

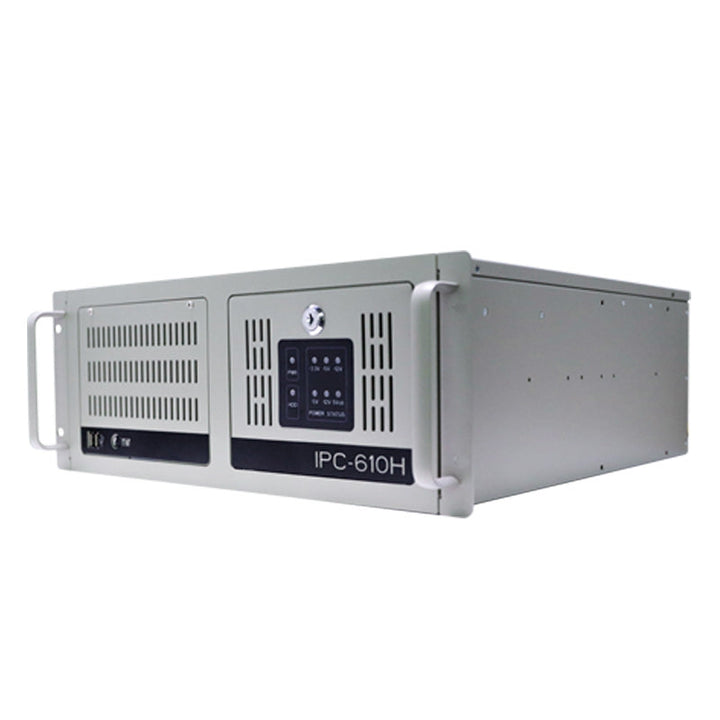

- BVSION 4U Rackmount Industrial PC - 10 COM Ports | Dual LAN | ATX Power | PCI-E x2
- Industrial-Grade Connectivity: 8× USB 2.0 + 2× USB 3.0 ,1 x PS/2 Port, 2 x VGA, 1 x PCIEX2
- Robust Power Design: 100-240V AC wide-range input with ATX power supply + 5V/12V DC output for stable 24/7 operation.
- Engineered for Harsh Environments: 4U rack-mountable chassis built for factory floors (-20°C to 60°C operating range). Robotic arm control systems
- High Expandability: Dual SATA ports + 1× mSATA slot + PCI-E x2 slot – supports motion control cards, GPUs, or custom expansions.
Description
Specifications
【Parameter List】
| Model | BVS-IPC610H |
| Dimensions | 386.6 mm × 243.7 mm × 170 mm |
| Material | Aluminum Alloy |
| CPU | Intel Core I5 (I3/I7 optional) |
| RAM | 8GB(16GB optional) |
| ROM | 128GB(256GB/512GB optional) |
| Front Panel | Front 12CM dual ball large fan x2 (with dust filter) |

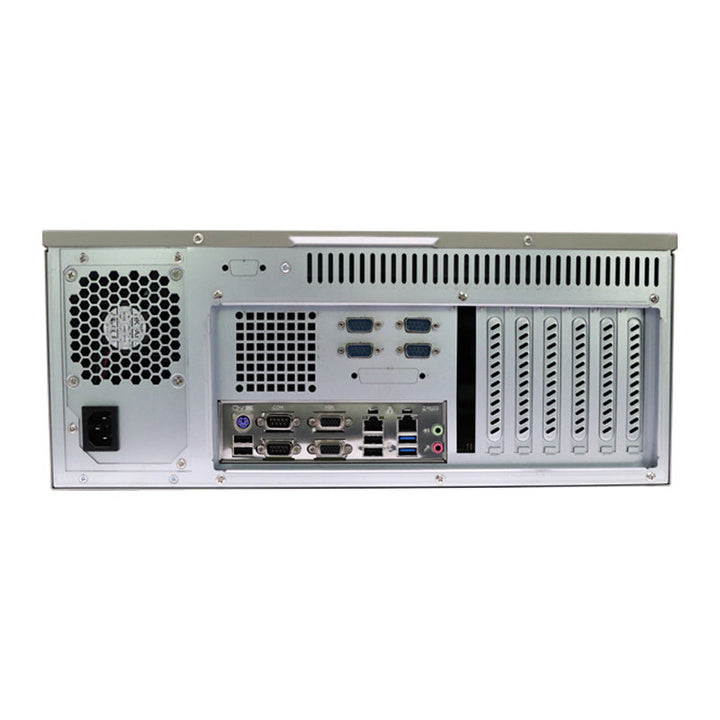

| I/O Ports | USB x 10 |
| LAN x 2 | |
| HD x 1 | |
| DC x 1 | |
| Line out x 1 | |
| MIC x 1 | |
| VGA x 2 | |
| COM(RS232/RS485) x 10 | |
| SATA x 1 MSATA x 1 | |
| PCI-E X16 x 1 | |
| Operating System | Windows 7(8/10/11 optional) |
| Power Adapter | 12V, 5A |
| OEM | CPU , BT ,Wifi , Logo ,Appearance etc. |
BVS IPC - Manufacturer Providing Wholesale Industrial Control Machines for Automation Solutions
$584.99
